Neogate TG100 | Yeastar NeoGate GSM TG100 1-Port Gateway

Description

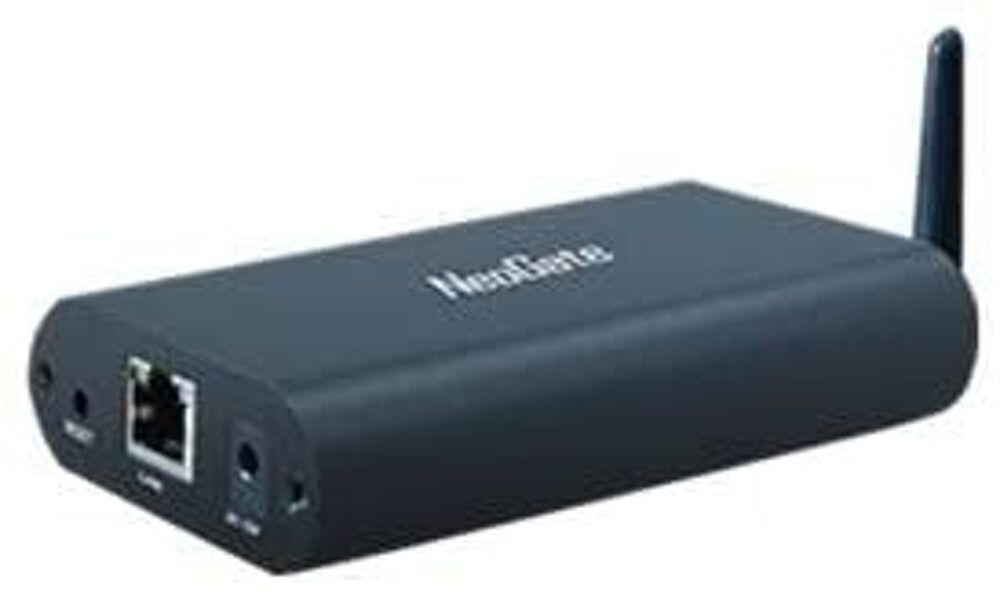

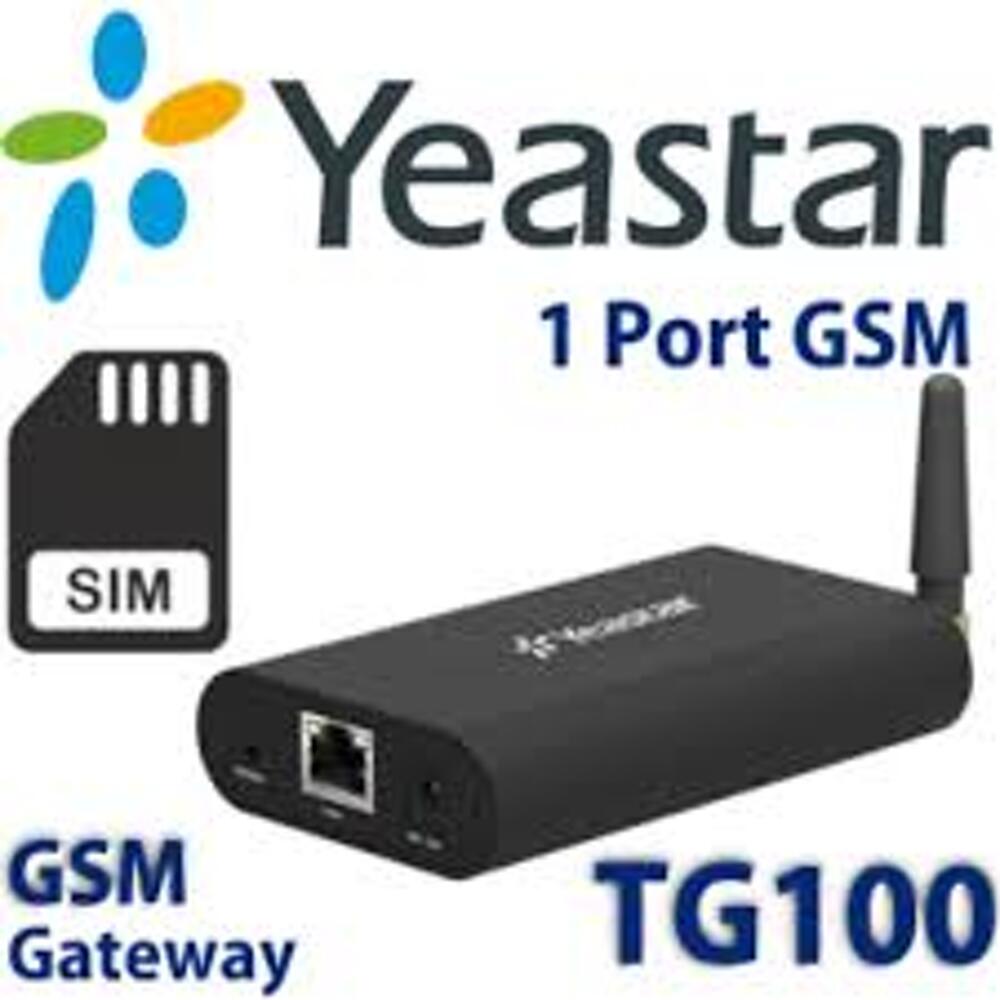

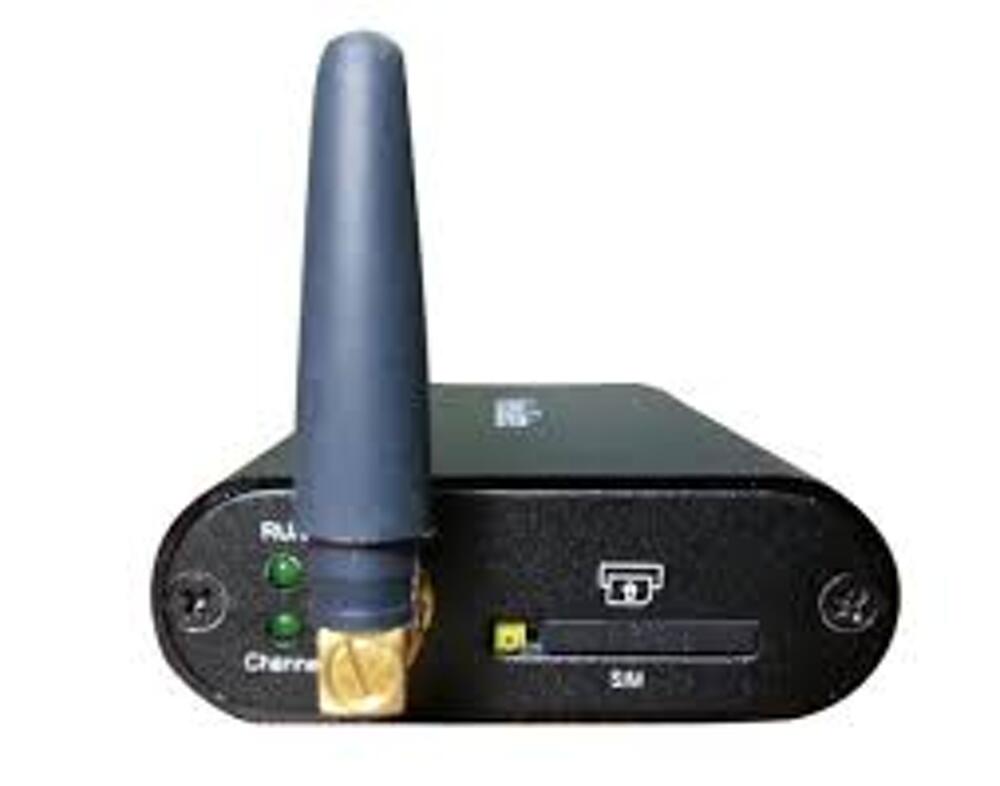

Yeastar TG100 is a fully featured 1 port VoIP GSM/CDMA/UMTS gateway that provides GSM/CDMA/UMTS network connectivity for softswitch and IP PBX. Reduce Costs for SOHO • Rich functionalities: A robust feature set that fulfills your various needs and cuts communication cost • Easy management: Simple and intuitive Web-based configuration saves you loads of time • Reliable performance: Stable with advanced hardware and software architecture • Excellent interoperability: Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server Product Specifications: • Mobile : 1 x GSM/CDMA/UMTS Channel • GSM Frequency: 850/900/1800/1900 MHz • UMTS Frequency : 850/1900 MHz, 850/2100 MHz, 900/2100 MHz • CDMA Frequency: 800 MHz • Protocol: SIP, IAX2 • Transport: UDP, TCP, TLS, SRTP • Voice Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex • Echo Cancellation: ITU-T G.168 LEC • DTMF Mode: RFC2833, SIP INFO, In-band • Calling Type: Termination (VoIP to GSM/CDMA/UMTS), Origination (GSM/CDMA/UMTS to VoIP) • LAN: 1 x 10/100Base-T Ethernet • Network Protocol: FTP, TFTP, HTTP, HTTPS, SSH • NAT Traversal: Static NAT, STUN • Network: DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN • Power Supply: DC 12V, 1A • Operation Range: 0°C to 40°C, 32°F to 104°F • Storage Range: -20°C to 65°C, -4°F to 149°F • Humidity: 10-90% non-condensing Product Includes: • 1 x TG100 Device • 1 x Power adaptor • 1 x Antenna Technical Data Sheets and User Manuals: Fully featured 1 port VoIP GSM gateway that provides GSMnetwork connectivity for softswitch and IP PBX. It significantly reduces the costs of calls with two-way communication: VoIP to GSM/CDMA and GSM/CDMA to VoIP
