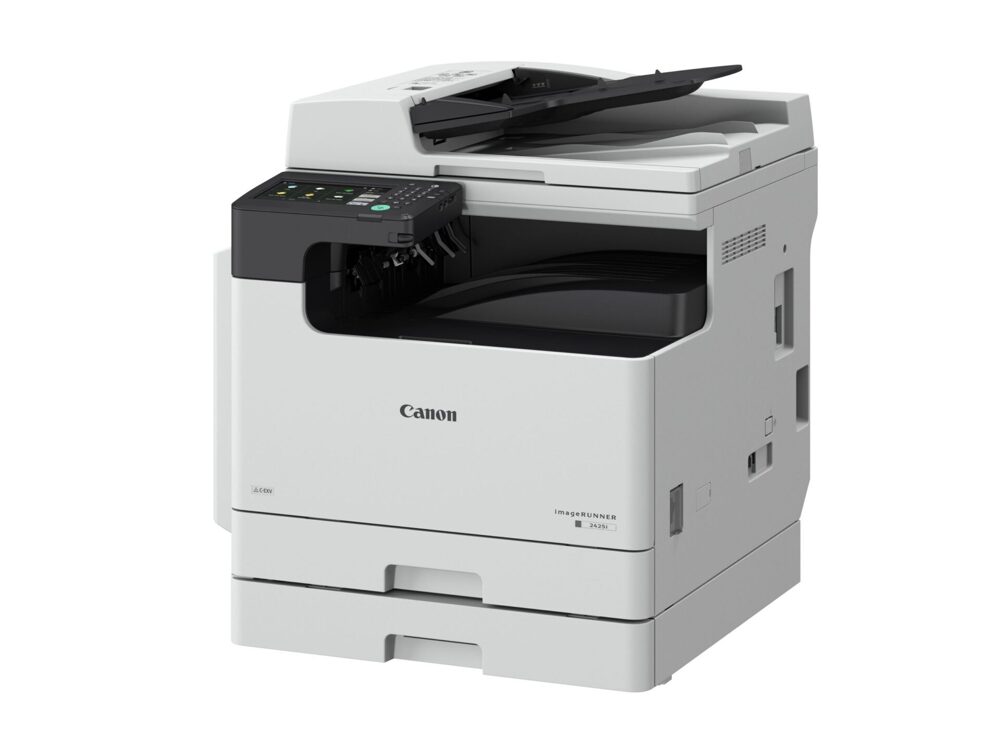

Canon imageRUNNER 2425i

Description

Machine type A3 Monochrome Laser Multifunctional Core functions Print, Copy, Scan, Send and Optional Fax Processor 1GHz Dual Core Processor Control Panel 17.8cm (7 inch) TFT LCD WVGA Colour Touch panel Memory Standard: 2.0GB RAM Storage Standard: 64GB eMMC (available space: 30GB) Interface Connection NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1 Paper Supply Capacity (A4, 80 gsm) Standard: 330 sheets Maximum: 580 sheets (with Cassette Feeding Module-AK1) Paper Output Capacity (A4, 80 gsm) Max: 250 sheets Supported media types Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Colour, Pre-punched Supported media sizes Multi-purpose tray: Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL] Custom Size/Free Size: Min. 95.0 x 139.7 mm up to 297.0 x 431.8 mm Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R Supported media weights Multi-purpose tray: 60 to 157 gsm Paper Cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm Warm-up Time (With Quick Start Up Mode ON) 4 Seconds or less* * Time from device power-on to when key operations can be performed on the touch panel display. From Sleep Mode: 10 seconds or less From Power On: 12 seconds or less * * Time from device power-on, until copy ready (not print reservation) Dimensions (W x D x H) iR 2425: 627 x 665 x 516 mm iR 2425i: 627 x 692 x 616 mm Installation Space (W x D) 1,065 x 1,285 mm Weight iR 2425i: Approx. 39.2 kg including toner iR 2425: Approx. 34.2 kg including toner Print Specifications Print Speed (BW) Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) Print Resolution (dpi) 600 x 600 Page description languages Standard: UFR II, PCL6, Optional: Adobe®PostScript®3TM Direct Print Supported file types: RUI: PDF, EPS, TIFF/JPEG, XPS USB Memory: PDF, TIFF/JPEG, XPS Network Place: PDF, TIFF/JPEG, XPS Printing from mobile and cloud AirPrint, Mopria, Google Cloud Print, Canon PRINT Business and uniFLOW Online A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. Fonts PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*2 PS fonts: 136 Roman *1 Requires optional PCL International Font Set-A1 *2 Requires optional Barcode Printing Kit-D1 Print Features Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer Operating System UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019 PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PPD: Windows® 7/8.1/10, MAC OS X (10.10 or later) Windows®/MAC OS: As of March, 2020 Copy Specifications Copy Speed (BW) Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) First-Copy-Out Time (A4) (BW) Approx. 7.4 seconds or less Copy resolution (dpi) 600 × 600 Multiple Copies Up to 9,999 copies Copy Density Automatic or Manual (9 Levels) Magnification 25% - 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% Copy Features Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample Scan Specifications Type iR 2425 : Standard Platen Cover iR 2425i: Standard Duplexing Automatic Document Feeder [2-sided to 2-sided] Document Feeder Paper Capacity (80 gsm) 50 Sheets Acceptable Originals and weights Platen: Sheet, Book Document Feeder media weight : 1-sided scanning: 52 to 105 gsm (BW/CL) 2-sided scanning: 52 to 105 gsm (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 gsm. Supported media sizes Platen: max. scanning size: 297.0 x 432.0 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm Scan Speed (ipm: BW/CL, A4) DADF： 1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy) Scan Resolution (dpi) Copy: up to 600 x 600 Send: (Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600 (Push, CL) up to 300 x 300, (Pull, CL) up to 300 x 300 Fax: up to 600 x 600 Pull Scan Specifications Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 7/8.1/10 Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016 Scan Method Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW) Send Specifications Destination Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP WebDAV Optional: Super G3 FAX Address book LDAP (2,000)/Local (1,600)/Speed dial (200) Send resolution (dpi) Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400*(Super Fine), 300 x 300, 400 x400*(Ultra Fine), 600 x 600* Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600* *Colour mode is black and white only Communication protocol File: FTP (TCP/IP), SMB (TCP/IP), WebDAV Email/iFax: SMTP (send), POP3 (receive) File Format Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word) Optional: PDF (Trace & Smooth), PDF/XPS (User Signature) *Single page only Universal Send Features Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Sender's Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation Fax Specifications Maximum Number of Connection Lines 1 Modem Speed Super G3: 33.6 kbps G3: 14.4 kbps Compression Method MH, MR, MMR, JBIG Resolution (dpi) 400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal) Sending/Recording Size Sending: A3, A4, A4R, A5*2, A5R*2, B4, B5*1, B5R*2 Receiving: A3, A4, A4R, A5R, B4, B5, B5R *1 Sent as B4 *2 Sent as A4 FAX memory Up to 30,000 pages Speed dials Max. 200 Group dials/destinations Max. 199 dials Sequential broadcast Max. 256 addresses Memory backup Yes Fax Features Sender's Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, TX Reservation, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox Store Specifications Memory Media Standard: USB Memory Security Specifications Authentication and Access Control User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login), Deparment ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express* (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login) *No charge for this solution; however activation is required. Access Management System (Access Control) Document Security Standard: Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1) Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically) Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2) Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support) *1 Requires optional uniFLOW Online / uniFLOW *2 Requires optional Universal Send Digital User Signature Kit-C1 Network Security TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception) Device Security Protecting MFP Software Integrity, Verify System at Start-up Device Management and Auditing Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting Environmental Specifications Operating Environment Temperature: 10 to 30 ºC (50 to 86 ºF) Humidity: 20 to 80 % RH (Relative Humidity) Power Source 250 V, 50/60 Hz, 10 Amp Power Consumption Maximum: Approx. 1,500 W Standby: Approx. 22.1 W*1 Sleep mode: Approx. 1 W*2 /Approx. 2 W*3 *1 Reference value: measured one unit *2 Wireless LAN power serve mode OFF *3 Wireless LAN power serve mode ON *2/*3 Sleep mode may not possible in all circumstances due to certain settings Typical Electricity Consumption (TEC)* : iR 2425 : 0.31 kWh iR 2425i: 0.30 kWh *As per US ENERGY STAR version 3.0 Noise levels (BW) Sound Power Level (LWA,m) (1-sided/2-sided) Active: 6.6* B, kv 0.3* B Sound Pressure Level (LpAm) (Reference) Bystander's position: (1-sided) Active: 54 dB* * Reference value: measured only one unit with ISO7779, described with ISO9296:2017 Standards Blue Angel Consumables Toner Cartridges C-EXV 60 Black Toner Toner yield (estimated yield @ 6% coverage) Black: 10,200 impressions (A4)
